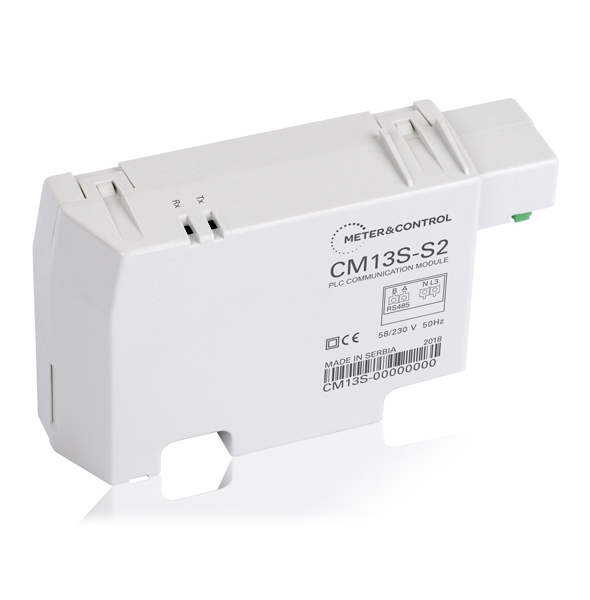

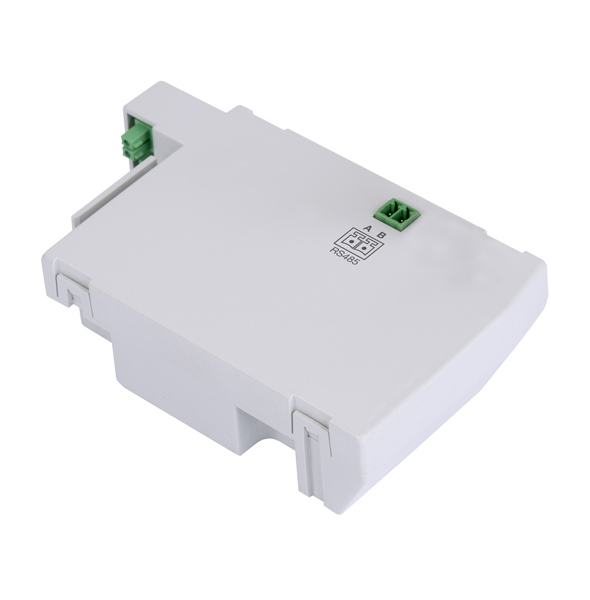

CM1yS

Plug-in PLC communication module

Interoperability according to DLMS/COSEM

CM1yS is the series of plug-in communication modules designed for easy integration of modular meters in AMI systems. They provide data exchange between electricity meters and data concentrators over the low-voltage network (S-FSK or G3-PLC). Communication modules are simply mounted under the terminal protective cover and use RS485 port for communication with the meter. Meters with installed communication modules are compliant with IEC 62052-11 and IEC 62053-21. All modules support DLMS/COSEM protocol.

Key Features

  • Auto-configuration according to the parameters stored in meters
  • Automatic recovery
  • RS485 port for communication with meter
  • Additional port for connecting to RS485 bus
  • S-FSK or G3-PLC
  • Visual communication LED
  • Call identification
  • Data protection
  • Independent power supply
  • Plug-in
