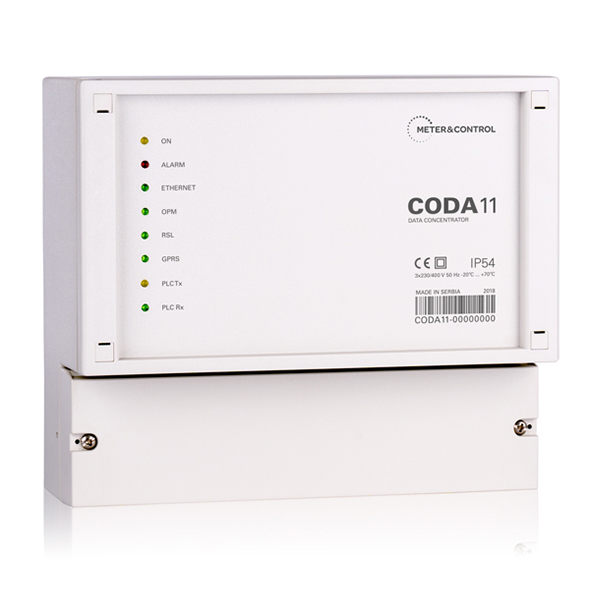

CODA11

Data concentrator

CODA11 data concentrator provides communication between AMI center and electricity meters. Communication between concentrator and electricity meters is carried over the low-voltage distribution network (PLC). Communication between concentrator and AMI center is carried over GPRS/3G network or Ethernet port using TCP/IP protocol. CODA11 provides reading, parameterization and load management, either automatically by a pre-defined schedule, or on request of the AMI center. Collected data is stored in the concentrator’s permanent memory and forwarded to the AMI center. CODA11 automatically detects newly installed meters on the PLC network and maintains active meters list. Concentrator is equipped with ports for local communication with meters, as well as for communication with external devices.

Key Features

  • PLC (S-FSK or G3-PLC) channel for communication with meters
  • GPRS/3G channel for communication with AMI center
  • USB port for communication with external devices
  • Ethernet port for communication with AMI center or local access
  • RS485 port for local communication with meters and external devices
  • RS232 port for communication with external devices
  • Plug&Play
  • Storing data in permanent memory
  • Works with up to 1 024 meters
  • Remote concentrator control and management
