Integrated smart meters

Integrated smart meters

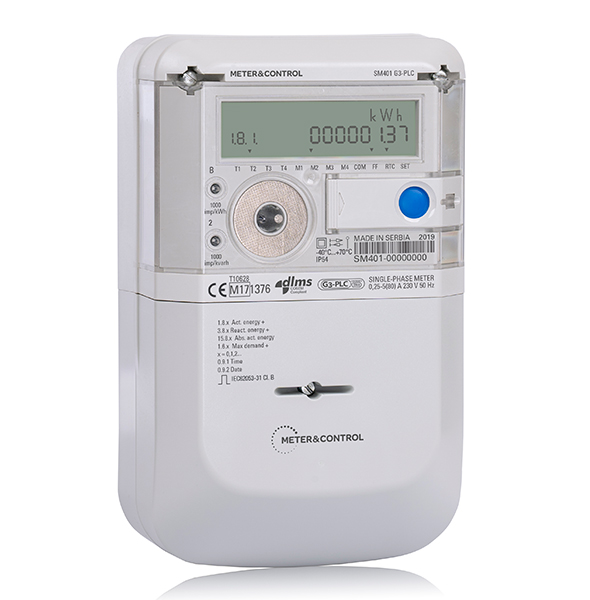

Sx401 G3-PLC

G3-PLC modem and switching device

Sx401 G3-PLC are three-phase and single-phase smart meters designed for measurement of electrical energy of residential consumers, with integrated G3-PLC modem and switching module for remote reading and power management. Wide range of measurement values including power quality data in combination with large capacity of load profiles makes this meter a key tool for utilities for making insight in overall condition of low voltage network. Robust G3-PLC technology in both CENELEC A and FCC frequency range, combined with IDIS Package 2 compatibility, makes this meter reliable and easy to integrate in existing utility’ environment. All functions are compliant with the following specifications and standards: IDIS, DLMS/COSEM, IEC 62052-11, IEC 62053-21/22/23, EN 50470-1/3 (MID), ITU G.9903/08-2017 (G3-PLC), and M-Bus.

Key Features

  • Integrated G3-PLC modem and switching device
  • Variety of additional input/output options available on demand (relays, pulse outputs, inputs e.a.)
  • 230 V/50 Hz or 110 V/60 Hz supported
  • Measurement of electrical values
  • High level data security
  • MID certificate
  • IDIS interoperability
  • DLMS/COSEM
  • Measurement of energy quality
  • M-Bus port for G, W, H meters reading
    (Wireless M-Bus on demand)
